Anda WPC Frame Making Machine

WPC Frame Making Machine is used to produce various kind WPC profiles, such as WPC skirting board, WPC door profile, WPC corner bead, WPC folding door profile, WPC moldings and so on. the surface of WPC skirting board can be treated by printing, lamination, which can make marble, wooden design on surface of product to match with WPC floor.

Quantity:

Inquire

Brand: Anda

Product Description
Video

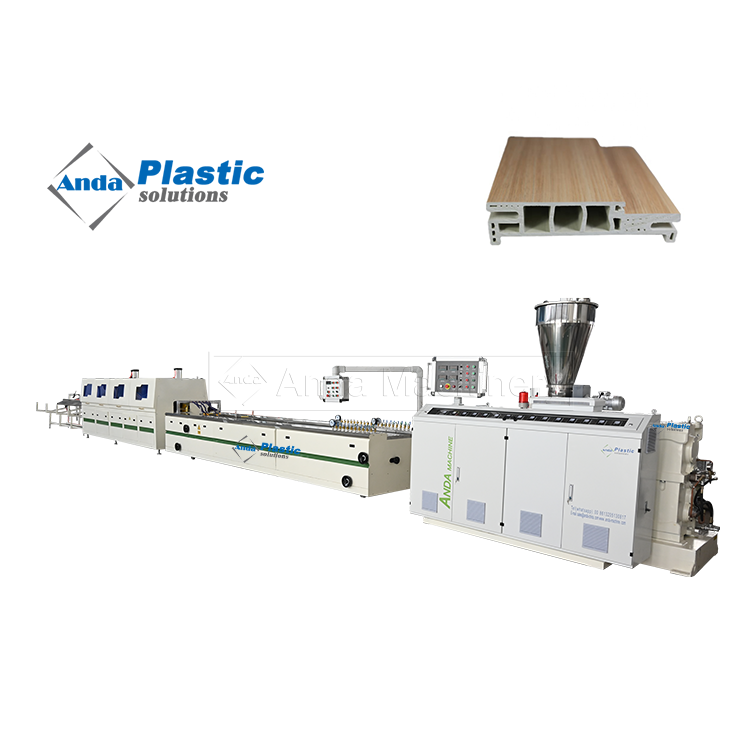

Anda WPC Frame Making Machine

wpc frame making machine

The wpc frame making machine comprises a material blender, extruder with heating zones, interchangeable molds, cooling chamber, and automated cutting system. Each part ensures precise, consistent production.

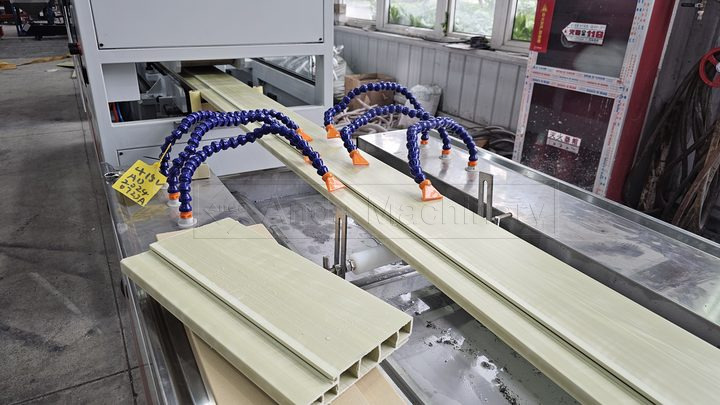

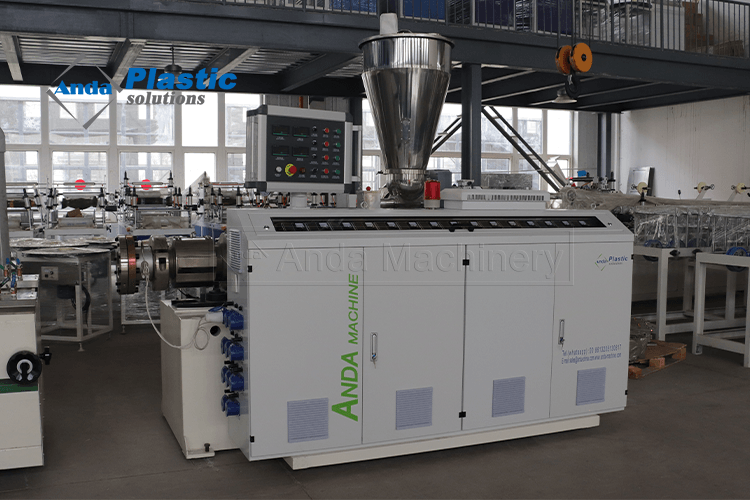

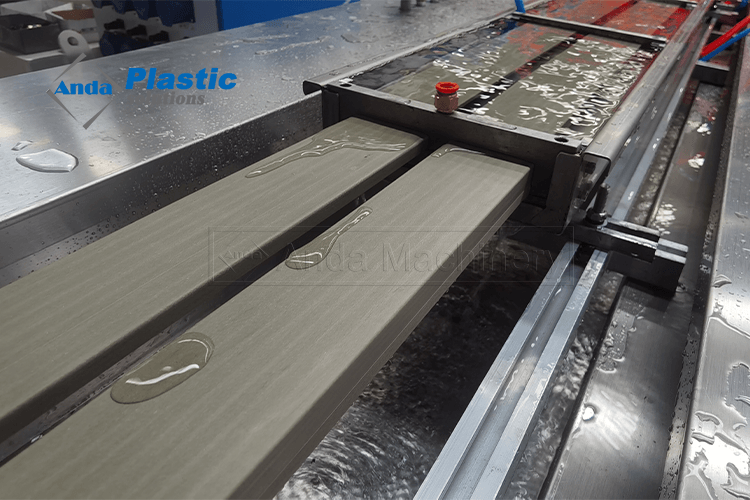

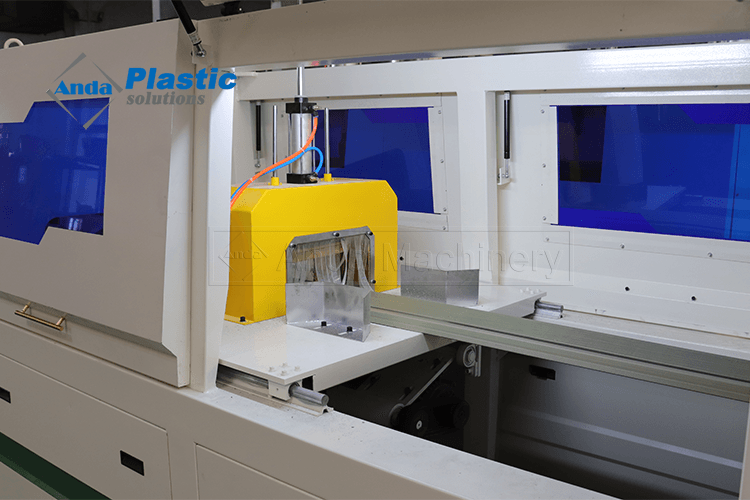

In operation, the wpc frame making machine first mixes wood fibers, plastic resins, and binding agents in the blender. The extruder then heats and compresses the mixture, pushing it through a mold to form the frame’s shape. The cooling chamber solidifies the profile, while sensors check dimensions. Finally, the cutting system trims the continuous profile to set lengths.

This streamlined process, overseen by the wpc frame making machine, adapts to various frame types—from door to window frames—delivering uniform, durable WPC products efficiently.

Product Details

wpc frame making machine

WPC frame making machine---Final products

wpc door frame machine price

Model

Model	51/105	55/110	65/132
Extruder	SJSZ51/105	SJSZ55/110	SJSZ65/132
capacity per 24h	2200kg	3000-3500kg	3000-3500kg
Motor power	15kw	22kw	37kw

Company Profile:

Our headquarter located Zhangjiagang city with convenient transportation access from shanghai and our factory are located at WUXI city, and the location is only five minutes away from WUXI east high speed strain station and 10 minutes away from WUXI airport with easy access from shanghai and Beijing and Guangzhou. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including Various CNC machine. In addition, we have obtained certificates. ISO9001 Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Turkey, USA, uzbekistan, Pakistan, Indonesia .
