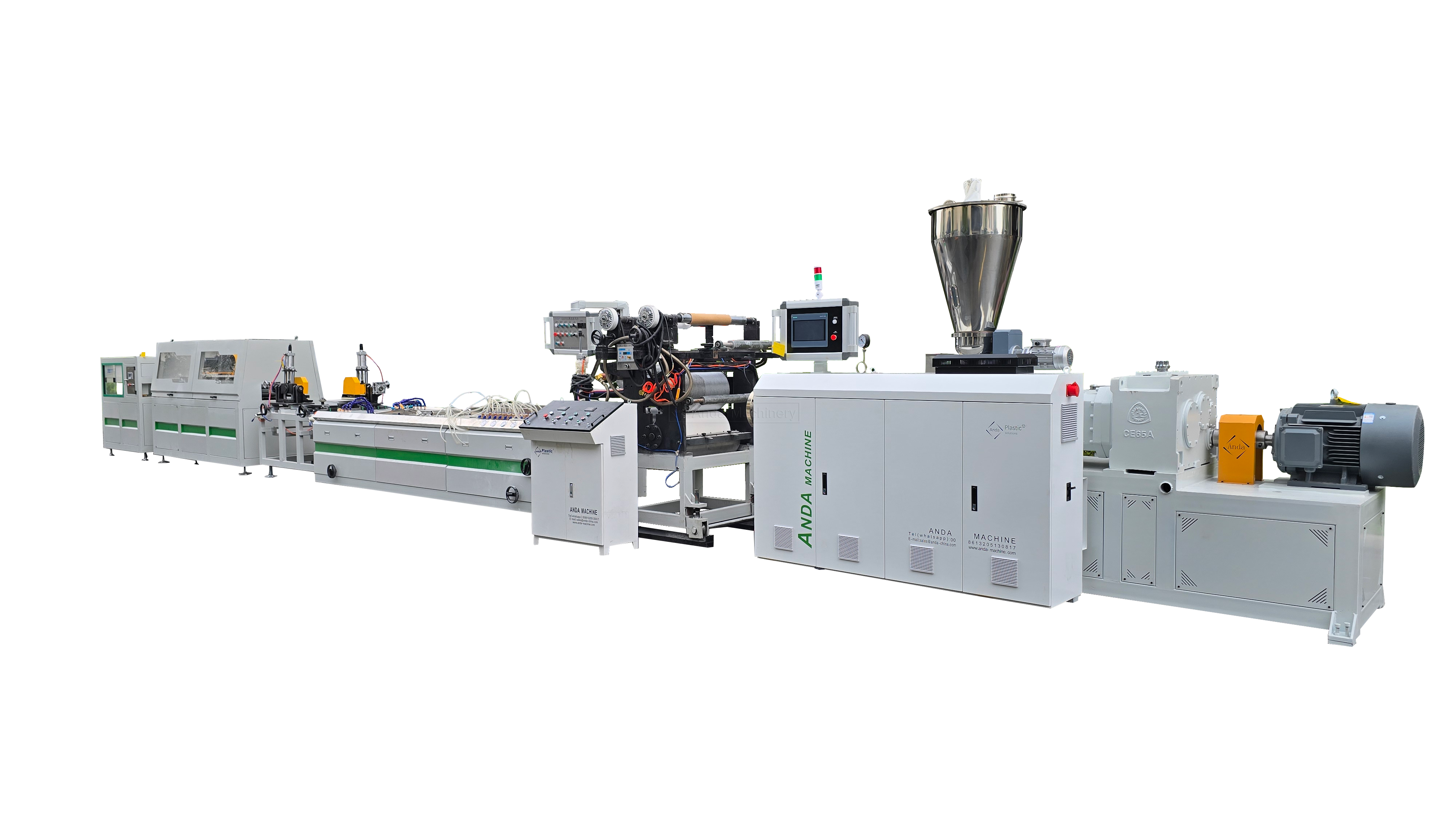

In production, the Soffit Panel Machine feeds raw materials into the extruder, which melts and shapes them via the mold into soffit panel profiles. After cooling to harden, the cutter trims panels to size.
The Soffit Panel Machine includes a material feeder, screw extruder with temperature controls, profiling die, air-cooling system, and laser-guided cutter.
In use, the Soffit Panel Machine feeds PVC or composite pellets into the extruder, which melts and pushes the material through the die to form panel shapes. Air cooling solidifies the structure, then the cutter, synced with production speed, trims to length.
This Soffit Panel Machine ensures precise, efficient manufacturing of consistent, weather-ready soffit panels for building projects.
| Popular Model | SJZ65/132-SJZ45/100+YF400 | SJP75/28-SJZ45/100+YF400 | SJP90/32-SJZ55/110+YF400 |
Max profile width, mm | 400 | 400 | 400 |
Haul off height, mm | 100 | 100 | 100 |
Haul off speed, m/min | 1-8 | 1-10 | 1-20 |
