Anda PVC Pulverizer Machine

The heavy-duty energy-saving pulverizer is a high-performance equipment that excels in energy efficiency, which is its most prominent advantage compared with traditional pulverizer.

Quantity:

Inquire

Brand: Anda

Product Description

Anda PVC Pulverizer Machine

The heavy-duty energy-saving pulverizer machine is a high-performance equipment that excels in energy efficiency, which is its most prominent advantage compared with traditional pulverizer machine.

In terms of power consumption, this advanced pulverizer machine achieves an output of approximately 11 kg per kilowatt. In contrast, the traditional pulverizer machine only has an output of around 5 kg per kilowatt under the same power input. This significant gap means the heavy-duty energy-saving model can process much more material while consuming the same amount of electricity.

It is particularly suitable for scenarios requiring large-scale material grinding. By reducing energy consumption per unit of output, it not only lowers operational costs for users but also contributes to energy conservation. Meanwhile, its stable performance ensures that the grinding quality is not compromised, making it a practical and eco-friendly choice for related industries.

Rotundity vibrating sieve

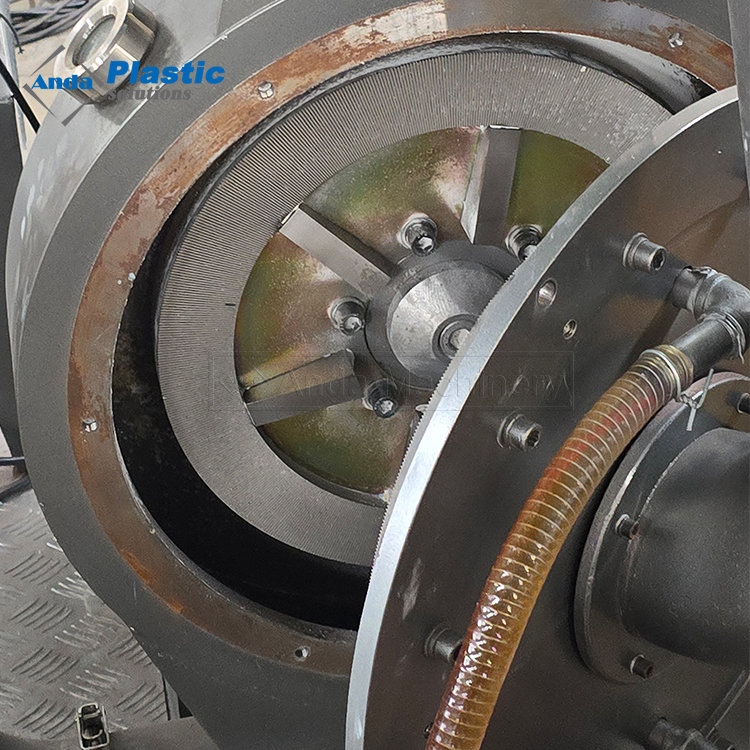

Grinding Disc

Wind-sending system

Screw Feeder

Dust collector

Rotor and rotary blade

400 heavy duty energy saving PVC pulverizer parameters

1	blade	movable knives (high-speed wear-resistant steel)
2	Main motor speed:	2550 r/min
3	Main motor power	22 kw (Nidec，Japan)
4	bearings	NSK
5	induced draft fan	2.2 kw
6	Vibrating screen diameter	800mm
7	Vibrating screen motor power	0.55KW
8	off the fan when unloading	0.75KW
9	Feeding method	Vibrating feeder
10	Feed particles	Length 5-10mm, diameter 3-4mm
11	Powder size	10-40 mesh
12	Dust removal method	Pulse dust removal
13	dust collector	cloth bag+ automatic cleaning
14	Connecting pipes	Stainless steel 304 diameter 159mm Material thickness:3mm
15	Cooling method (2 layers)	304 pipe, water cooling
16	Material	Except for the blades and the grinding cavity, all parts in contact with the material are made of 304 stainless steel
17	Startup method	Frequency conversion speed regulation, inverter brand, Nidec (5 years warranty for drive, 2 years for motor)
18	electrical components	Schneider
19	Yield	250-350kg / h
20	Voltage	380V50HZ or customized
