PVC Edge Band Machine PVC Edge Band Machine

PVC Edge Band Machine Adopts Single Screw And Double Screw Extruder To Produce PVC Edge Band . The Main Advantage Of This Machine Is High Output .

Quantity:
  • Model: SJ55 ; SJ65 ; SJSZ55/110 ; SJSZ65/132
  • Brand: Anda Machinery
  • Code: AD 48 / 55 / 65
  • Product Description
  • Running Video
  • Running Video

PVC edge band machine

PVC edge band machine

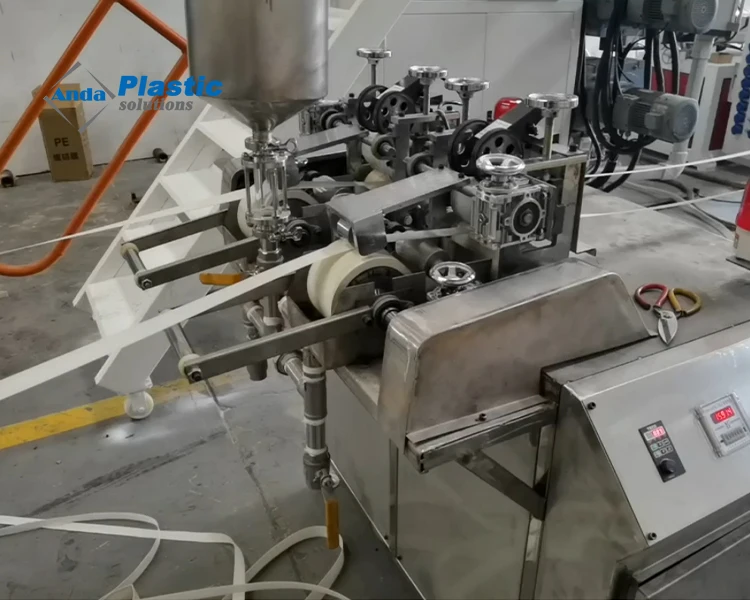

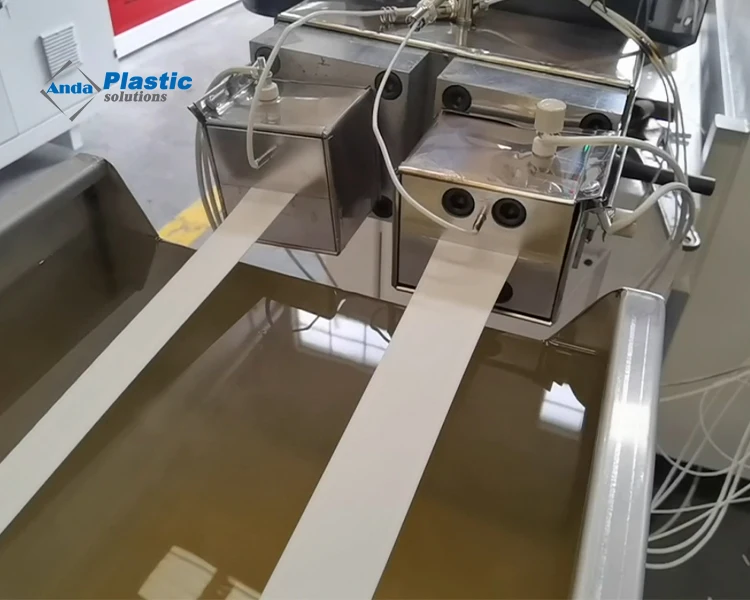

PVC edge band machine adopts double screw extruder to PVC edge band with width from 19mm to 54mm and thickness from 0.4 to 2mm with different moulds. this machine has online primer coating machine. The main advantage of this machine is high output.


Three ways of PVC edge band machine



1. Mixer+ PVC granulating machine+single screw extruder+printing machine

Process:    First you need mix raw material together by PVC mixer, second make granule by granulating machine, and then Use single screw extruder(Sj45 or SJ65 single screw extruder) to get edge band, then use printing machine to get glossy surface or wooden design and etc.



Model and parameters:

Model Extruder model Mould Cavity Max Output(kg/h) Drive Motor Power(kw)
 SJ45   SJ45   Single   700kg/day    11kw
 SJ65   SJ65   Double   1200kg/day    15kw





2. Mixer+Double screw extruder+ printing machine

Process:     First mix raw material together by mixer, and the use double screw extruder(SJSZ51/105 or SJSZ55/110) to produce egde band, final step is to print color or make edge band glossy.



Model and parameters:

Model Extruder model Mould Cavity Max Output(kg/h) Drive Motor Power(kw)
 SJSZ51   SJSZ51   6cavity   2200kg/day    15kw
 SJSZ65   SJSZ65   8cavity   3500kg/day    22kw





3. Three calender system+ printing machine+cutting machine:

First mix raw material, and then use three calender system to produce big width edge band sheet, and then print colors on the edge band, finally, cut pvc edge band sheet into specific width like 19mm, 20mm etc...

Popular Model

SJSZ65

Extruder

SJZ65/132

width

600mm

thickness

1-5mm

Max capacity(kg/h)

100-200kg/h
