Introduction of WPC Fluted Wall Panel Production Line

Views: 364 Author: Site Editor Publish Time: Origin: Site

WPC fluted wall panel production line is used for making WPC fluted wall panel which is now a popular product applied in decoration. It could help the decoration more exquisite and improve a level.

WPC fluted wall panel making machine including for main parts, they are twin screw extruder, vacuum calibrator, hauling engine and cutting machine. Anda Machinery use world famous band of motor, engine, gearbox to produce and guarantee the quality of machine.

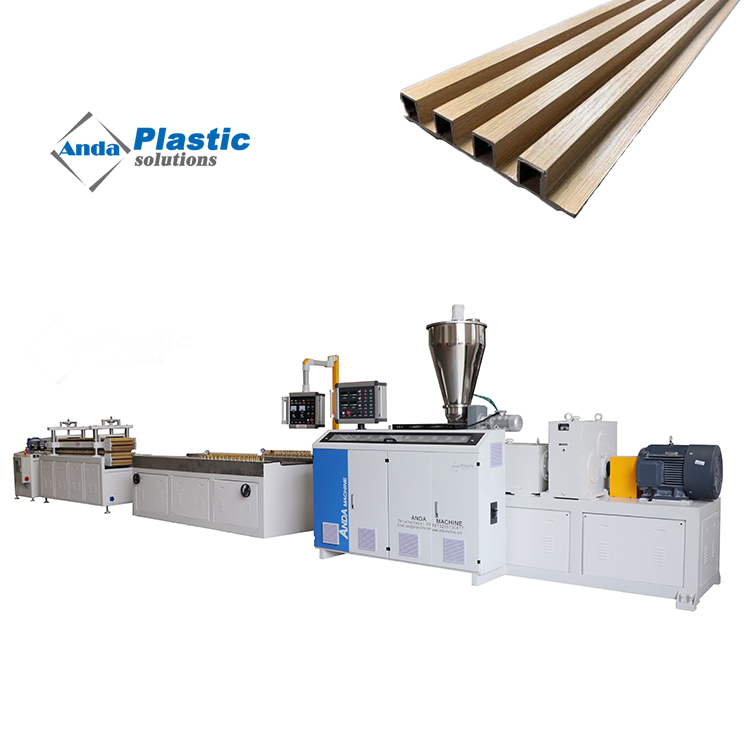

Following is the display of our WPC fluted wall panel extrusion line:

 WPC Fluted Wall Panel Making Machine WPC Wall Panel Machine



1. Twin Screw Extruder

WPC Fluted Wall Panel Making Machine WPC Wall Panel Machine



2. Vacuum Calibrator

WPC Fluted Wall Panel Making Machine WPC Wall Panel Machine



3. Hauling Engine

WPC Fluted Wall Panel Making Machine WPC Wall Panel Machine



4. Cutting Machine

Product Details



1. Twin Screw Extruder

Extruder adopts PVC ceiling dedicated screw, make sure best plastisizing effect.

Extruder speed and haul off speed controlled by ABB frequency converter, saving power and easy adjusting speed.
Extruder temperature adopt PID control, temperature fluctuation self adjusting, it realize the high automatic level.

WPC Fluted Wall Panel Making Machine WPC Wall Panel Machine





WPC Fluted Wall Panel Making Machine WPC Wall Panel Machine







2. Vacuum Calibrator

Use vacuum system which could better achieve cooling accomplished results.

WPC Fluted Wall Panel Making Machine WPC Wall Panel Machine





3. Cutting Machine

Use wear-resisting saw blade to imcrease the sharpness and the working life.

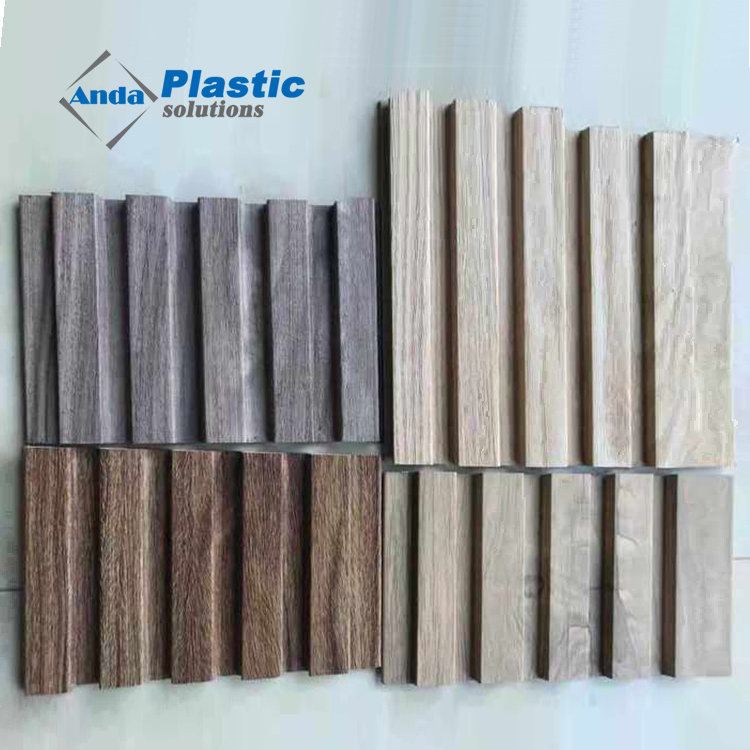

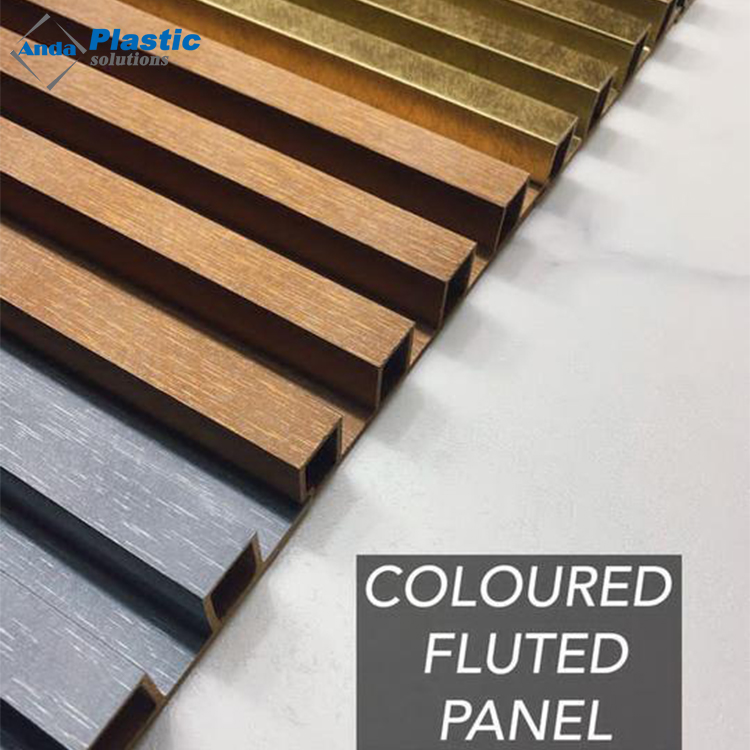

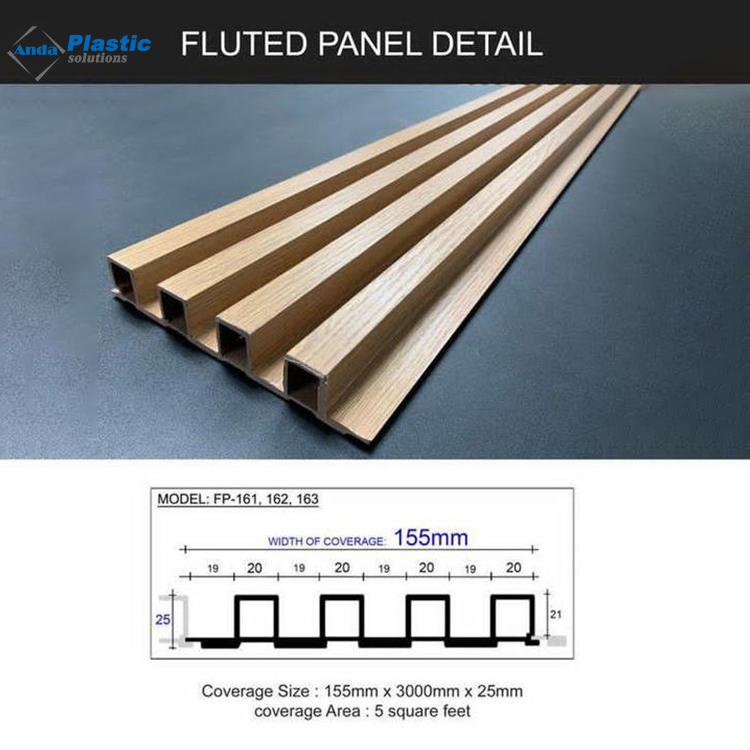

4. Final product display:WPC Fluted Wall Panel Making Machine WPC Wall Panel MachineWPC Fluted Wall Panel Making Machine WPC Wall Panel Machine



WPC Fluted Wall Panel Making Machine WPC Wall Panel Machine

Main Parameter

Model

55/110

65/132

Product width

200mm/300mm/400mm/500mm

300mm/400mm/500mm/600mm

Extruder

SJSZ55/110

SJSZ65/132

Capicity per 24h

>1200m2

>1600m2



Main Features

1.High speed, double output than common PVC ceiling production line, greatly decrease the labour cost and electricity cost and manage cost.

2.Extruder adopts PVC ceiling dedicated screw, make sure best plastisizing effect

3.Extruder speed and haul off speed controlled by ABB frequency converter, saving power and easy adjusting speed
4.Extruder temperature adopt PID control, temperature fluctuation self adjusting, it realize the high automatic level
5.The caco3 filler can up to 300phr, formula cost is greatly reduced.
6.Equipped with infrared tracking device which can eliminate the problem of fluctuation of extrusion flow rate, further can make sure get best product
7.Lower power consumption,it can save 25-30% electrical power consumption comparing with most  kind PVC ceiling production line.
8.With online hot stamping, easy operation, saving labour.



WPC Fluted Wall Panel Making Machine WPC Wall Panel Machine

Company Information

WPC Fluted Wall Panel Making Machine WPC Wall Panel Machine

Anda machinery is a leading supplier of WPC Fluted Panel Making Machine/ The Great Wall Panel Machine with turnkey solution from A to Z. so far we have installed a numbers of WPC Fluted Panel Making Machine/ The Great Wall Panel Machine at many countries, such as: India, Indonesia, Turkey, Pakistan.

Anda machinery is located at wuxi city, Jiangsu province, it is 120km from shanghai. Factory occupied area is 12000sqm with total 50 employees and 30 experienced workers with more than 20 years experience.

We own advanced CNC machine and a lot of modern machining equipment. By cooperating with the global famous supplier of electrical and mechanical parts, the quality of our machines reaches the top level in the industry.

And, our experienced service team can give customer is fast, professional and full sided services to customers.

And, we also have some overseas service personals in some countries, which can provide fast and professional service to the customers there.
