PVC 2 Feet By 2 Feet Ceiling Tiles Machine Extrusion Line

high speed PVC ceiling making machine/extrusion line is used to produce PVC ceiling panel, PVC wall panel with width 200mm,250mm,300mm and 600mm with different section shape and height. the surface of PVC ceiling panel can be treated by double color printing & coated with glossy oil, or by heat transfer printing, or by lamination, which can make marble, wooden design on surface of product..

Complete pvc ceiling wall panel making machine / production line with online lamination line is used to produce PVC wall panel with width normally from 250mm to 300mm with different section shape and height. the surface of PVC ceiling panel can be treated by double  by hot stamping printing, or by lamination, which can make marble, wooden design on surface of product.

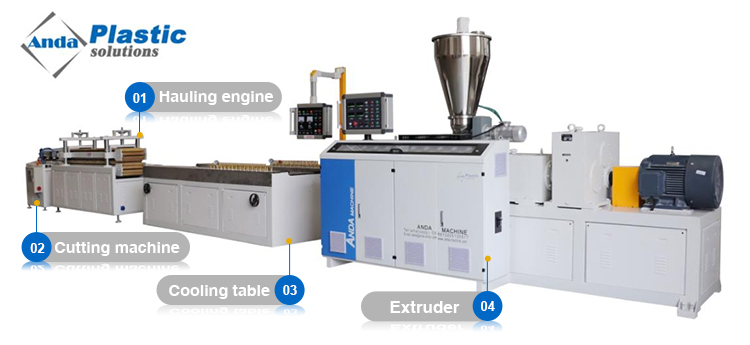

Production line including:

1.Auto loader for raw material  ---1set

2.Extruder---1set

3.Die mould---1set

4.Vacuum cooling table---1set

5.Hot stamping and laminating machine--1set

6.Haul off machine---1set

7.Cutter---1set

8.Stacker---1set

1. PVC wall panel making machine--extruder

(1) Adopt Siemens motor (effective control the starting current, lower staring power, reduce voltage fluctuation)

(2) Adopt JC gear box (high efficiency, high bearing capacity, transfer smoothly, compact structure)

(3) Adopt twin screw extruder (which use 38CrMoAL material -- high-wearing, high strength, high temperature resistance, corrosion resistance)

(4) Adopt PID control (temperature fluctuation self adjusting and realize the high automatic level)

(5) Adopt ABB frequency converter (control and regulate motor speed, stable performance, strong overlord capacity)

(6) Adopt Schneider contactor (high service life, high security)

2. pvc wall panel extruder machine--cooling table

Adopt vacuum system to help the PVC products fast finalization and guarantee it is not out of shape.

3. pvc panel machine wall panel making--hauling engine

The material of hauling is not too hard which can well protect the transfer of product. It could help the effective traction.

4.pvc wall panel production machine--cutting machine

The blade is hard and sharp which has high efficiency and long service time. It also adopt sensing system and easy to cooperate.

Process of PVC 2 feet by 2 feet ceiling tiles machine / extrusion line:

Mixer → extrusion → surface treatment (including three types: two color printing, hot stamping, and lamination)

According to our formula(main raw material is PVC resin and caco3), raw materials are mixed in the mixer and tranported to the extruder. Through the PVC ceiling extrusion line, panel forming. It you adopt hot stamping and lamination, after extrusion line, your product is finished, But if you adopt two color printing, you can print it offline in the printing machine.

Model of PVC 2 feet by 2 feet ceiling tiles machine / extrusion line:
