Anda UV Edge Band Printer (54/108/310mm) offers Single-Pass 2880DPI printing. Zero plate cost, no color deviation. Supports 24/7 running.
Digital Printing Machine for Edge Band
Almost no color difference in mass production batches,improve printingquality.
Resolves issues with inaccurate registration in traditional printing, ensuring no color deviation in the final product, while delivering more lifelike colors and a richer range of tones.
Eco-friendly and energy-efficient; produces less odor than traditional printing methods, effectively improving the work environment and proving worker-friendly.
EQUIPMENT CHARACTERISTICS
*54mm printing width,with more than 30m/min printing speed
*Standard internal circulation industrial printhead, Ink-saving,clog-resistant
*Six-channel freely configurable,meeting diverse production schemes
*Compensation technology for defective zzles,ensuring pattern quality.
*Dynamic adjustment of single nozzle for ffective color deviation management.
The ink delivery system's humidity and pressure balancing control system greatly improves color deviation issues.
EQUIPMENT PARAMETERS | |||
Equipment Model | AD-FB54/G4 | AD-FB108/K4 | AD-FB310/K12 |
Equipment Size (Length × Width × Height) | 3200mm×728mm×1790mm | ||
Equipment Weight | 0.8T | ||
Printing speed | 15-35m/min | ||
Printhead Model | Japanese Industrial-Grade High-Speed | ||
Single Maximum Spray Printing Width | 54mm | 108mm | 310mm |
Maximum Feed Thickness | 2mm | ||
Equipment Power | 15kW | ||
Cleaning Method | Automatic Cleaning System (Standard) | ||

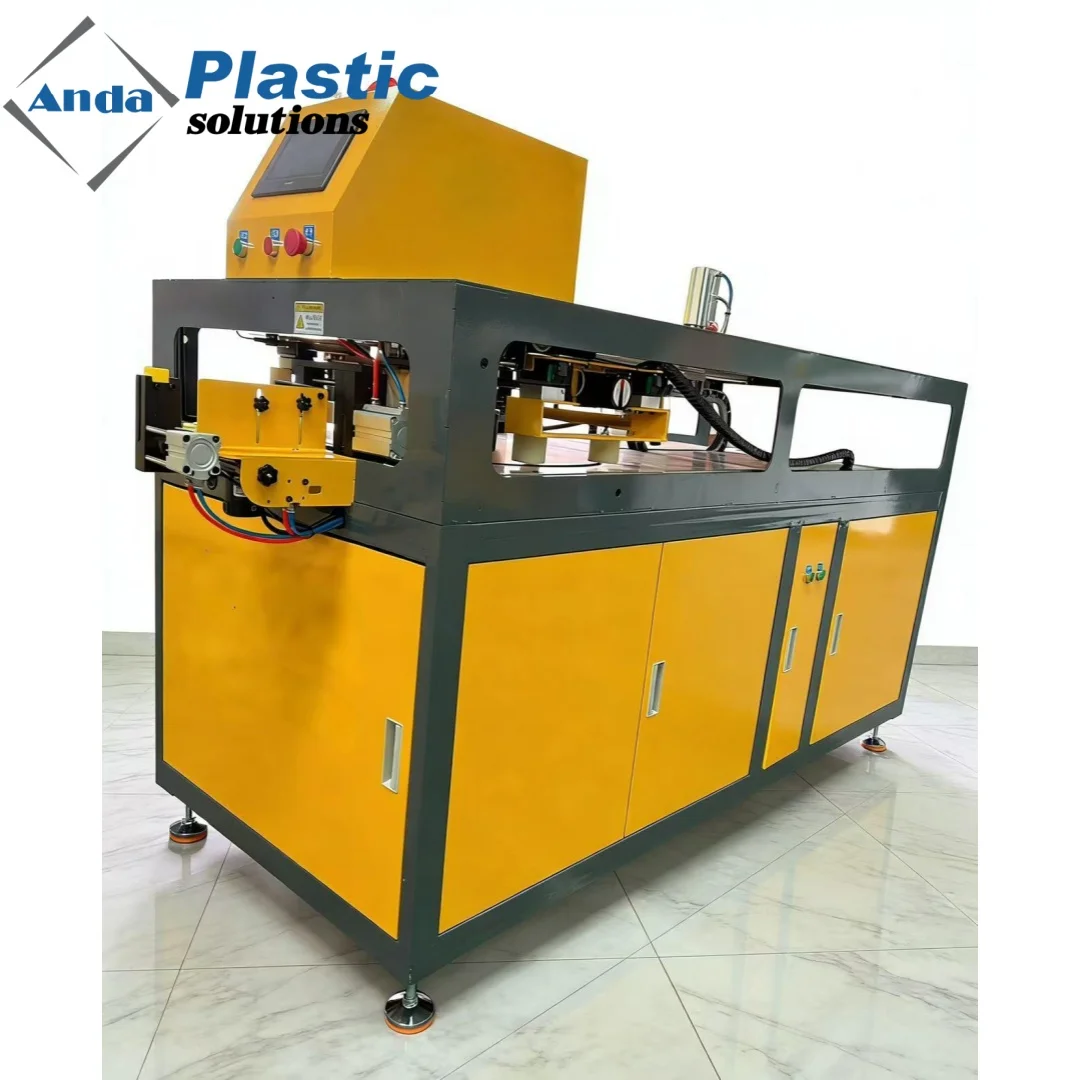

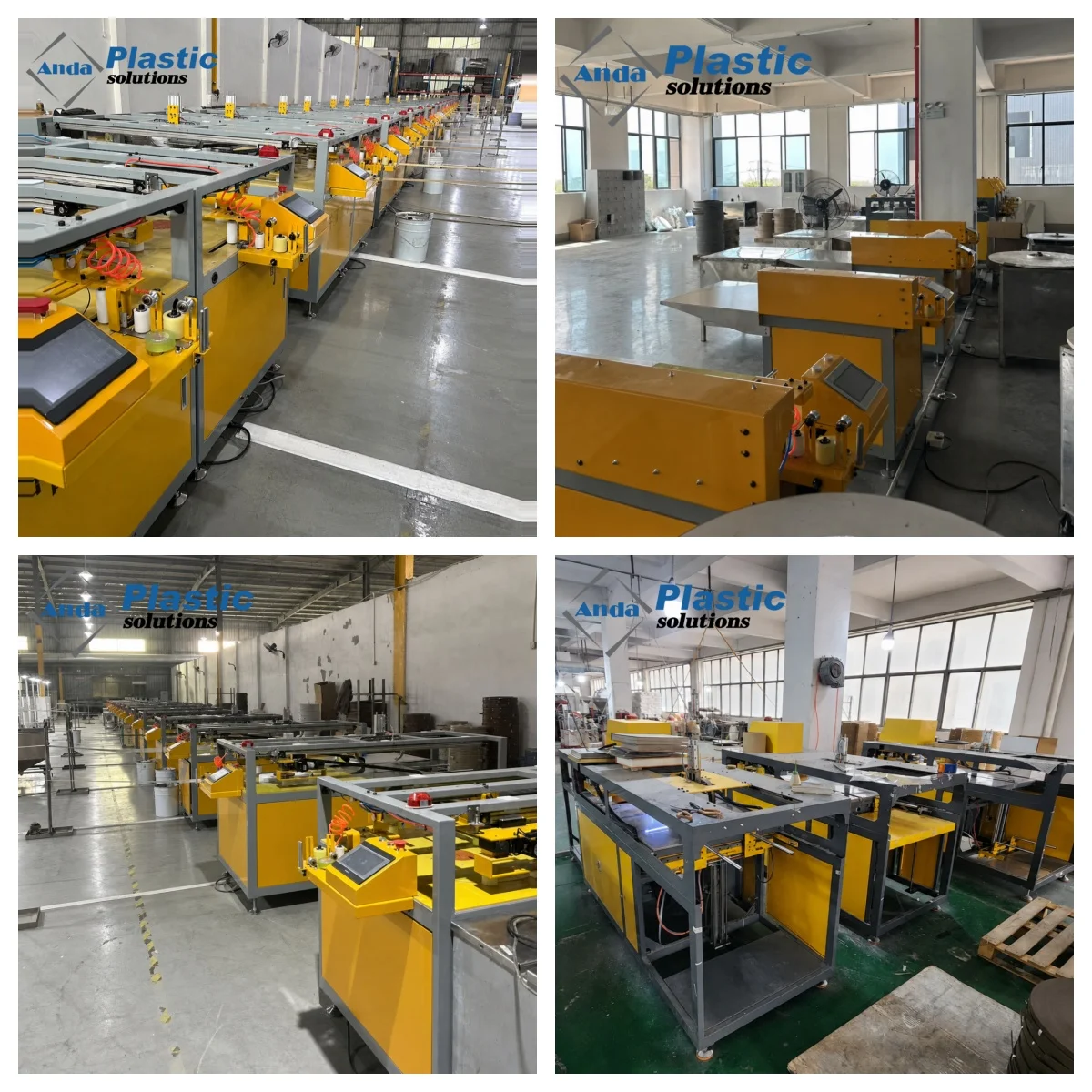

product name | Extrusion semi-automatic winding machine | Automatic Printing Paper Reeling Machine |
Overall dimensions | Length: 1.65 m / Width: 0.75 m / Height: 1 m | Dimensions: 4.2 m (length) × 1 m (width) × 1 m (height); the entire machine consists of welded 30×60 square tubes, and the complete production line comprises two main frames measuring 2.1 m, 0.8 m, and 0.7 m in length, respectively. |
drive-by-wire | The host control unit is a PLC from Shenzhen Vicon; the motor used is a 0.75 kW private-drive motor from Shanghai Zhengji; the auxiliary electrical components are from Schneider Electric or Delixi; and the display is a 7-inch screen from Shenzhen Vicon. | The host control unit is a PLC (Shenzhen Vicon) with six independent units for individual operation; the motors consist of six 0.75 kW standalone motors (Shanghai Zhengji); the auxiliary electrical equipment utilizes Schneider Electric / Delixi; and the display system comprises six 7-inch displays (Shenzhen Vicon). |
electric voltage | 220V | 220V |
pneumatic | A 24 V solenoid valve controls the cylinder motion, while a pressure rotary valve regulates the pneumatic pressure; the required inlet air pressure shall be no less than 4 kPa. | A 24V solenoid valve controls the movement of the cylinder, with six workstations each independently controlled. |
