Twin Screw PVC Extruder is applied to produce rigid PVC profile, sheet, board, pipe, PVC pelletizing and so on.
Features:
* screw material 38Crmoal , bietammlic screw barrel, dedicated screw for different application
* atops JC gearbox, the best for conical twin screw extruder
* adopts world famous brand electrics, such as Semens motor, omron temperature controller, Schneider contactor.
* adopts PID control, temperature fluctuate self adjusting, high automatic, PLC touch screen control available upon customer order.
Technical parameter:
Model | Screw Diameter(mm) | Main Motor(kw) | Output(kg/h) |
SJSZ51 | 51/105 | 18.5/22 | 80/110 |
SJSZ55 | 55/110 | 22/30 | 120/150 |
SJSZ65 | 65/132 | 37/45 | 280/350 |
SJSZ80 | 80/156 | 55/77 | 380/450 |
SJSZ92 | 92/188 | 110/132 | 700/850 |
1. Adopt Siemens motor
effective control the starting current, lower staring power, reduce voltage fluctuation
2.Adopt JC gear box
high efficiency, high bearing capacity, transfer smoothly, compact structure
3.Adopt twin screw extruder
it use 38CrMoAL material -- high-wearing, high strength, high temperature resistance, corrosion resistance
4.Adopt PID control
temperature fluctuation self adjusting and realize the high automatic level

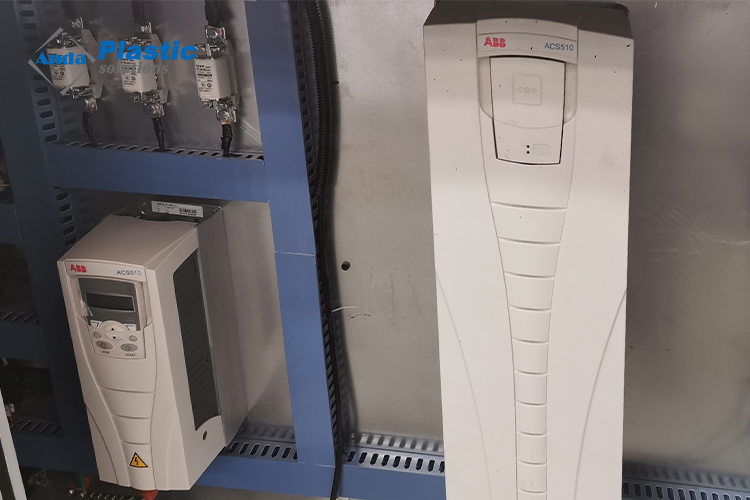

5.Adopt ABB frequency converter
control and regulate motor speed, stable performance, strong overlord capacity
6.Adopt Schneider contactor
high service life, high security
* Speed controlled by inverter, saving power and easy to adjust speed
* Extruder temperature controlled by Omron intelligent controller, temperature fluctuation self adjusting
* Easy and convenient for operation and maintain
* Economical price, suitable for large scale investment.
